Wöhler vis700 HD (DEMO Unit)

Demo Unit

The Wöhler VIS 700 inspection camera offers exactly what professionals have been waiting for: razor sharp high definition images, a focus function for precise inspection, and now wireless locating. The Wöhler VIS 700 is the ideal inspection camera for waste water pipes, flue gas and ventilation lines as well as NDT and plumbing applications.

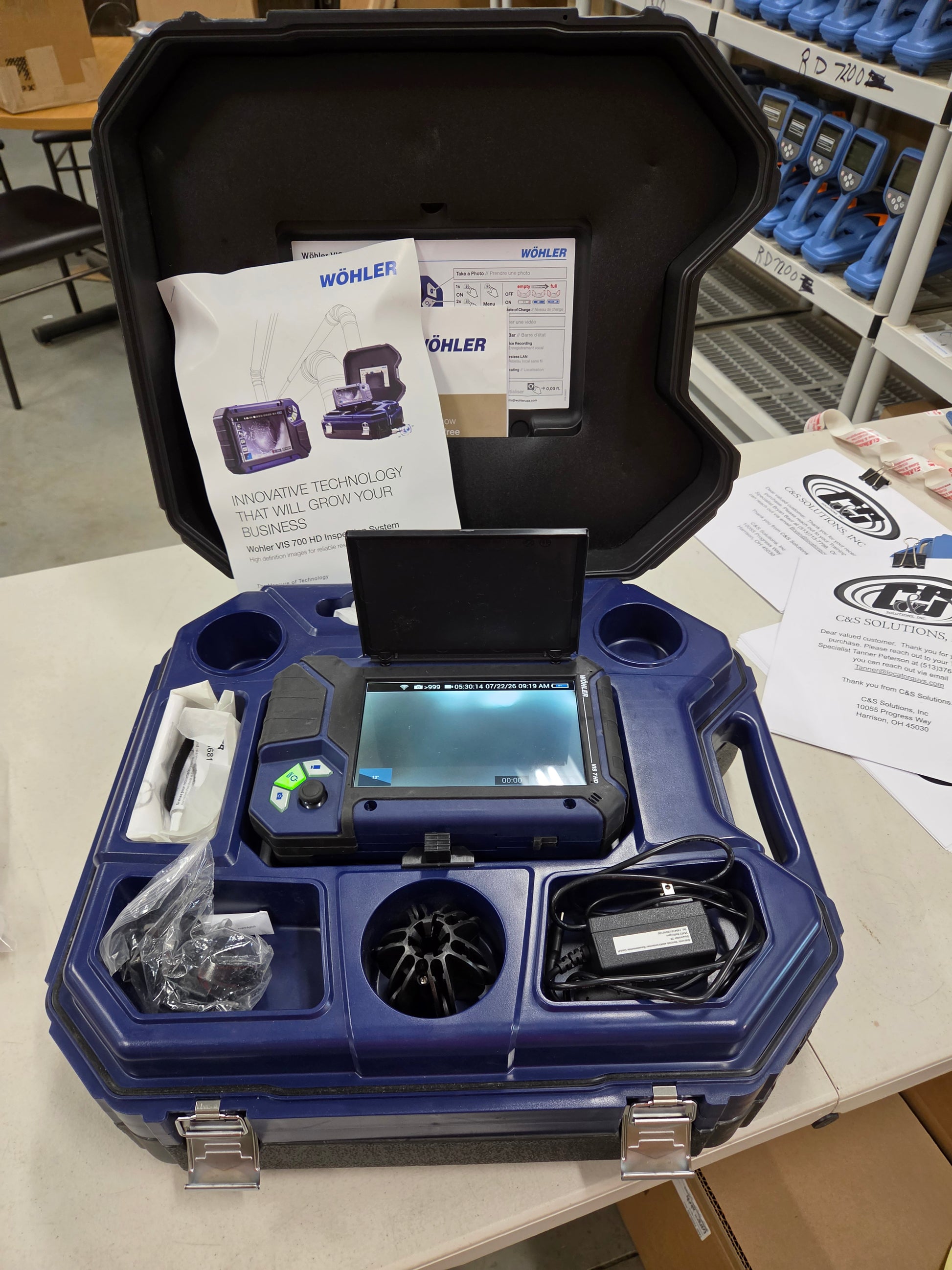

The VIS 700 comes with:

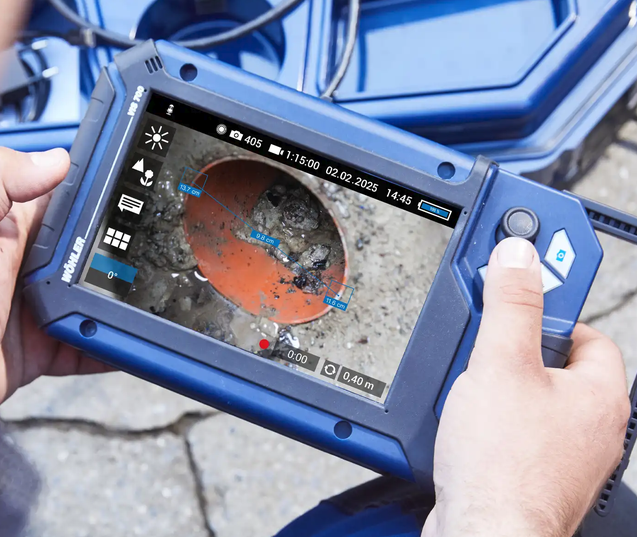

• 7” TFT touchscreen color monitor
• Color camera head 1.5” pan and tilt
• 32 GB SD Card
• 100’ push rod 0.33×0.22 in diameter
• 1 anti-slide mat
• USB charger and cable
• Hard-shell plastic carrying case
• Full Manufacturer warranty

Specifications:

Monitor

• Dimensions housing: 10 x 6 x 2 in
• TFT display: 7″ / 16:9 format, 1280 x 800 px
• Weight: 2 lbs.
• Power supply: USB C 5 V / 3 A
• Power supply: 3.7 V, 11.4 Ah rechargeable Li-Ion battery
• Battery operating time: 4 h (battery status in display)
• Operating temperature: 32 – 104 °F
• Storage temperature: -4 – 122 °F

Wöhler pan & tilt camera head 1.5 inch

• Type: 1/2.7″ Color CMOS
• IP rating: IP 67
• Image capturing angle diagonal: 70°
• Pan left to right by 180° and rotate by 360°
• Focus distance: 1 inch – ∞
• Light source: 10 white LEDs
• Protection: Waterproof to IP 67 (up to 40 ft. depth for 30 mins.)
• Dimensions: 1.5 x 2.5 inches
• Transmit frequency of Locator: variable

Camera rod

• Length: 100 ft.
• Diameter: 33“ x .22“

Electronic meter counter

• Resolution: 1 inch
• Max. deviation: 5% of reading

Memory

• Max. capacity of SD card: 32 GB
• Technology: SD or SDHC, speed class 10
• Recording capacity: Approx. 3 GB/h
• Resolution recording: 1280 x 720 HD, max. 25 fps
• Recording format: AVI (H264)

Double-walled plastic case

• Dimensions: 7 x 18 x 20 inches
• Total weight incl. monitor, camera head and push rod: 22 lbs.

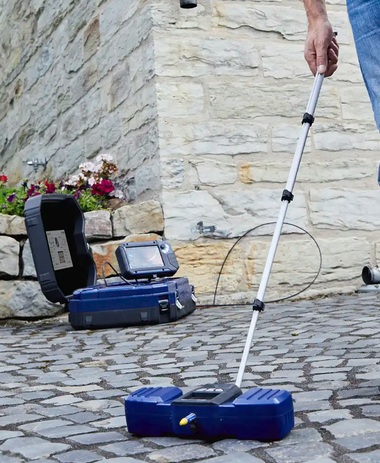

Locator receiver

• Display: Graphic camera position indicator
• Output impedance, headphones: Typ. 32 Ohm
• Frequency: ~9 kHz
• Power supply: 3.7 V rechargeable Li-Ion battery
• Operating temperature: 0 – 104 degrees F
• Storage temperature: 14 °F…104 °F
• Weight: 1.5 lbs.
• Dimensions: 12 x 6 x 3 inches
