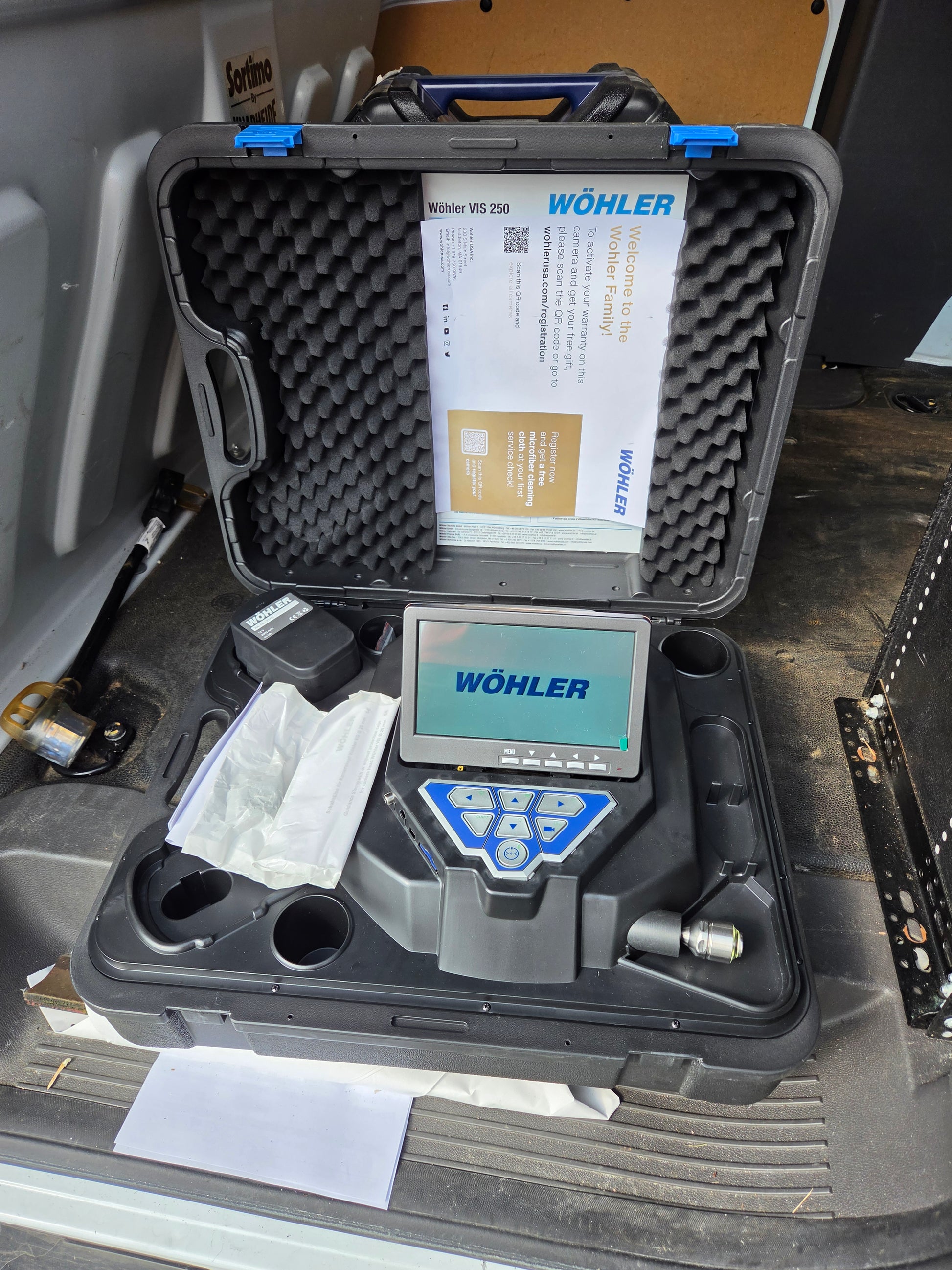

Wöhler vis250 (DEMO Unit)

Wöhler vis250 (DEMO Unit)

$2,300.00 USD
$3,294.00 USD $2,300.00 USD
Sale Sold out

Demo Unit

The Wöhler VIS 250 / VIS 200 inspection camera allows for easy, mains-independent analysis of damaged areas in pipes with a diameter of 1.5'' or larger. The battery-powered camera, housed in a compact case, is also suitable for use in tight and hard-to-reach areas. The high-intensity color camera head provides a clear view during inspections of sewer pipes, downspouts, and exhaust pipes.

Key Features
Camera Head: Waterproof IP 68 1-inch color camera head with 12 white LEDs and an integrated 8.9 kHz locator transmitter.
Reach: 100-foot flexible push rod designed to navigate multiple 90° bends.
Display & Data: Removable 7-inch TFT color monitor with a 6-foot connection cable, digital distance counter, and SD card slot for video and photo recording.
Applications:
Wastewater pipes, ventilation lines, flue gas lines, and chimneys

Monitor:

  • Dimensions housing TFT-display Video out Weight
  • 7″ x 4.5″ x 1.3″ 7″ / 16:9 format FBAS signal 1 lbs

Power supply:

  • Space for 2 rechargeable batteries, each 12 V or via power pack

Battery operating time:

  • Max. 2 rechargeable batteries, each 120 mins. = 4 h (battery status in display)

Miniature camera head, color Ø 1″ mm:

  • Type – 1/3″ COLOR CMOS
  • Resolution – 420 lines
  • Pixels – 768 x 576 (PAL), 656 x 492 (NTSC)
  • Light sensitivity – 0.5 Lux
  • Lens – f = 0.09″, F = 2.5
  • Viewing angle – 115°
  • Light source – 12 white LEDs
  • Degree of protection – Waterproof to IP 68
  • Dimensions – Ø 1″ x 1.5″
  • Weight – 0.5 lbs
  • Operation temperature – 32…104 °F, RH 95 % MAX
  • Storage temperature – -4…122 °F, RH 95 % MAX
  • Transmitter frequency – 8.9 kHz

Push rod:

  • Length – 100 ft.
  • Diameter – 0.2″

Distance measurement:

  • electronic meter counter

Plastic case:

  • Dimensions – 20″ x 17″ x 7″ (l x w x h)
  • Weight – 15 lbs

Locator receiver:

  • Display – Graphic visualization of transmitted position
  • Output impedance
  • Headphones – 32 Ohm
  • Power supply – 3.7 V Li-Ion rechargeable battery
  • Operating temperature – 32…104 °F
  • Storage temperature – 14…104 °F
  • Weight – 1.3 lbs
  • Dimensions – 13″ x 6″ x 3″ (l x w x h)

Memory (Wohler VIS 250):

  • Recording – 2 GB SD card (2.5 h recording capacity)
  • Interface – Mini USB port
