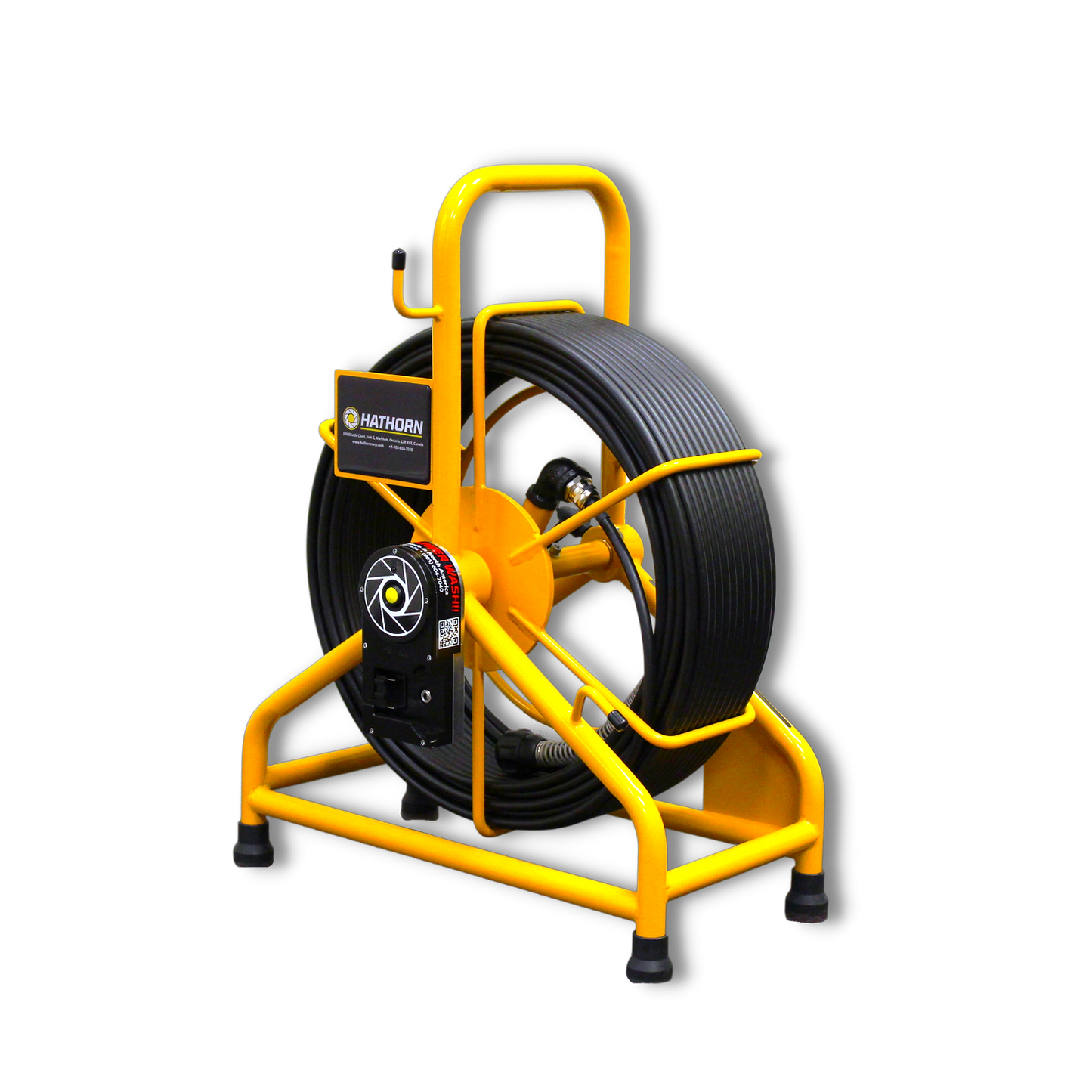

Hathorn WiFi Mid Reels
Hathorn WiFi Mid Reels
Powerful. Portable. Made for Municipal-Grade Inspections.
The Hathorn Wi-Fi Mid Reel is a professional-grade inspection system built for 3"–10" lines. With HD self-leveling camera options, Wi-Fi streaming, and a built-in 512Hz sonde, it's engineered for contractors, municipalities, and service pros who demand performance in the field.
Couldn't load pickup availability
More Information
More Information
Key Features
• Wi-Fi Streaming to 4 Devices
Stream live inspections to phones or tablets using the Hathorn-V4 app (iOS 15+ / Android 12+). Record, capture images, and add voice notes—no monitor required.
• HD Self-Leveling Camera Options
Standard 1.43" head keeps visuals upright and clear. Optional 1.23" and 1.68" sizes available for varied pipe diameters.
• Integrated 512Hz Sonde
Pinpoint the camera head’s location underground—ideal for trenchless jobs and diagnostics.
• Real-Time Distance Counter
Monitor push rod depth on-screen to precisely identify problems and document findings.
• Battery-Powered Portability
Runs on 18V Milwaukee™ (or equivalent) tool batteries for cordless, all-day operation. With wheels built for tough jobs, your jobsite transport becomes seamless.
• Built to Withstand the Field
Butt-welded steel frame, stainless steel camera housing, and HDPE push rod withstand harsh environments and heavy use.
• Modular & Compatible
Compatible with Hathorn H12+ control modules. Camera heads and accessories can be swapped based on job needs.
Best For
• Pipe Sizes: 3"–10"
• Applications: Sewer & drain inspections, municipal mains, gas lines, HVAC, real estate inspections
• Users: Contractors, municipal crews, plumbers, inspectors
Technical Specs
• Cable: 200 ft. x 1/2" HDPE push rod
• Camera Options: 1.23", 1.43", 1.68"
• Sonde: 512Hz built-in
• Battery: 18V tool battery compatible
• App: Hathorn-V4 (iOS / Android)
Need Help Choosing?
Contact us for help selecting the right camera head, control module, battery, or locator for your inspections.
